Amana 45730 Solid Carbide Signmaking & Lettering Router Bit
Signmaking Router Bits: V-Groove Router Bits, Solid Carbide: 60° x 9/16″ Dia x 7/16″ x 1/4″ Shank
Originally developed in Europe specifically for professional signmakers, this solid-carbide bit features an extra-fine 60° point that produces a clean, precise cut. For those intricate lines, this bit is superior to standard ‘V’ groover. Makes crisp, clean cuts in solid woods, MDF and acrylics.
Standard Equipment:
45730 Solid Carbide V-Groove Router Bit

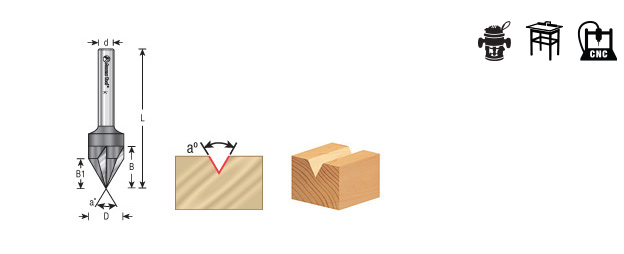

Specifications:
Diameter (D): 9/16″
Angle (a°): 60°
Cutting Height (B): 1/2″
B1: 7/16″
Shank (d): 1/4″
Overall Length (L): 2-1/4″
Flutes: 3
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
