Description

Amana 45802 Carbide Tipped Dovetail Router Bit

Jointing Router Bits: Dovetail Router Bits: 9° x 3/8″ Dia x 3/8″ x 1/2″ Shank

Standard Equipment:

• 45802 Dovetail Router Bit

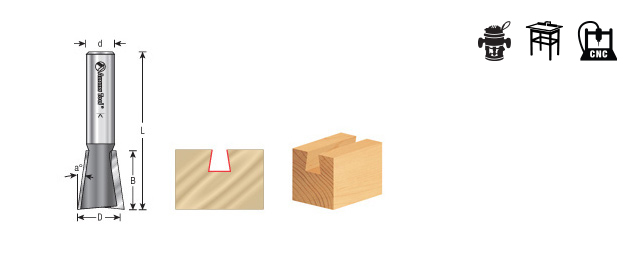

Specifications:

• Diameter (D): 3/8″
• Angle (a°): 9°
• Cutting Height (B): 3/8″
• Shank (d): 1/2″
• Overall Length (L): 2″
• Flutes: 2

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
