Description

Amana 45837 Carbide Tipped Dovetail Router Bit

Jointing Router Bits: Dovetail Router Bits: 7° x 9/32″ Dia x 1/2″ x 1/4″ Shank

Industrial quality carbide tipped bits for the Porter Cable Jig 4212.

Standard Equipment:

• 45837 Dovetail Router Bit

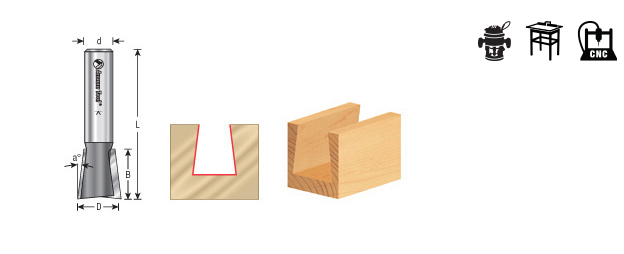

Specifications:

• Diameter (D): 9/32″
• Angle (a¬∞): 6.24¬∞
• Cutting Height (B): 1/2″
• Shank (d): 1/4″
• Overall Length (L): 2-13/32″
• Flutes: 2

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
