Profiling Router Bits: Ball End Router Bits, Carbide Tipped: 3/8″ Rad x 11/16″ Dia x 1/2″ x 1/2″ Shank
Cut channels for pipes or cables using the ball end bit. The profile requires the cut to be made in a single pass. To reduce stress on the bit, cut an initial groove using a straight bit matching the D1 dimension of the ball end bit.
Standard Equipment:
45964 Ball End Router Bit

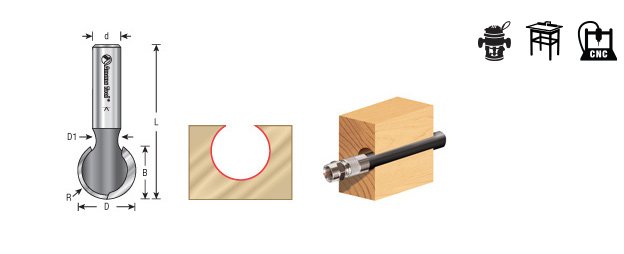

Specifications:
Radius (R): 3/8″
Diameter (D): 3/4″
Cutting Height (B): 11/16″
D1: 5/16″
Shank (d): 1/2″
Overall Length (L): 2-1/2″
Flutes: 2
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
