Amana 47400 4 Wing Flush Trim Single Bevel Cutter Router Bit Assembly
Trimming Router Bits: Bevel Trim Router Bits, Carbide Tipped: 0° x 7/8″ Dia x 1/4″ x 1/4″ Shank with Ball Bearing
An assembly offers the option of switching cutters – from flush trim to either of two bevel trims – without removing the bit from the router or even changing the depth-of-cut setup. Four flutes yield a smooth, crisp cut finish.
Standard Equipment:
47400 4 Wing Flush Trim Single Bevel Cutter Assembly

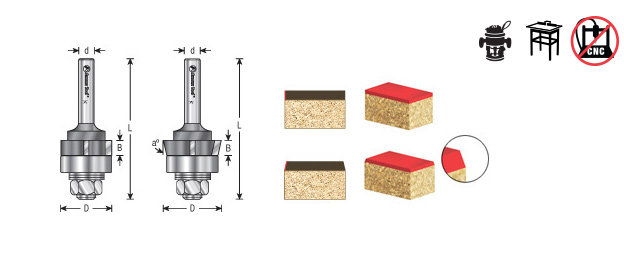

Specifications:
Angle (a°): 0°
Diameter (D): 7/8″
Cutting Height (B): 1/4″
Shank (d): 1/4″
Overall Length (L): 2-3/8″
Wings: 4
Replacement Bearing: 47708
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
