Profiling Router Bits: Bullnose Router Bits, Convex Edging, Carbide Tipped: 23/32″ Rad x 13/16″ Dia x 1-1/4″ x 1/4″ Shank
Cuts a shallow arc – the fingernail shape – rather than a full 180-degree roundover. Like the bullnose radius bit, it has short flats above and below the cutter arc, which produce fillets on stock thicker than 7/8″. Must be used with an edge guide on handheld routers, or the fence on a router table.
Standard Equipment:
51580 Bullnose Router Bit

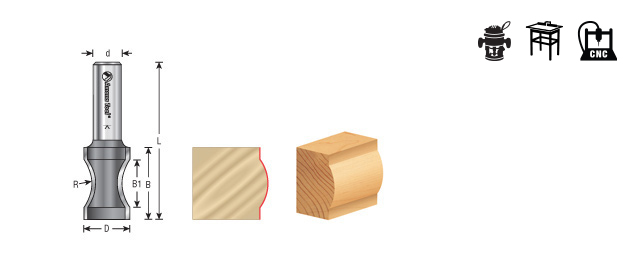

Specifications:
Radius (R): 23/32″
Diameter (D): 13/16″
Cutting Height (B): 1-1/4″
B1: 27/32″
Shank (d): 1/4″
Overall Length (L): 2-1/2″
Flutes: 2
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
