Profiling Router Bits: Hand Grip Plunge Router Bits, Carbide Tipped: 1/2″ Rad x 45° x 1-1/8″ Dia x 1-9/16″ x 1/2″ Shank
Intended for forming and edging internal hand-helds and cutouts in a single pass, this bit will also cut a soft bullnose on any exposed edge. Use in a CNC or other automatic router. Plunge cuts on router table are not recommended.
Standard Equipment:
51590 Hand Grip Plunge Router Bit

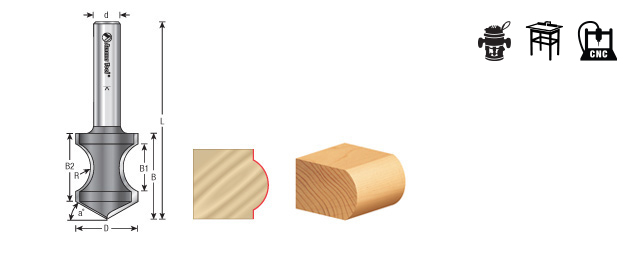

Specifications:
Angle (a°): 45°
Diameter (D): 1-1/8″
Radius (R): 1/2″
B1: 7/8″
B2: 1-1/42″
Cutting Height (B): 1-9/16″
Shank (d): 1/2″
Overall Length (L): 3-5/8″
Flutes: 2
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
