Door Making Router Bits: Finger Grip & Door Lip Router Bits, Carbide Tipped: 5/64″ x 15/64″ Rad x 1-1/2″ Dia x 13/16″ x 1/2″ Shank
Produce clean, modern chests and cabinets uninterrupted by hardware pulls and knobs by integrating the pulls into the doors, drawers and lids. These one-pass cutters offer many appearance and ergonomic options, providing positive grips and softened, easy-on-the-fingers edges. All bits can be used in CNC and table-mounted routers. Larger diameter cutters will work in edge-guide or template-guide equipped handheld routers.
Standard Equipment:
53808 Finger Grip Router Bit

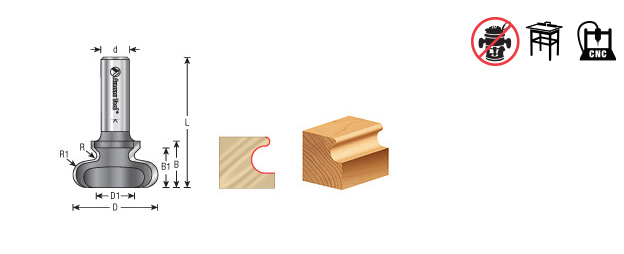

Specifications:
Radius (R): 5/64″
R1: 15/64″
Diameter (D): 1-31/64″
D1: 11/16″
Cutting Height (B): 53/64″
B1: 45/64″
Shank (d): 1/2″
Overall Length (L): 2-21/64″
Flutes: 2
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
