Door Making Router Bits: Raised Panel Router Bits, Carbide Tipped: 3/4″ Rad x 2-5/8″ Dia x 5/8″ x 1/2″ Shank
Create raised panels for cabinet doors, frame-and-panel furniture, and architectural paneling with a raised-panel bit. The cutter forms a fillet to delineate the raised field, a shaped band around the field, and an integral tongue to fit the panel groove in the frame members. The profile contour and the reveal width varies. All tools have 1/2″ shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Use these bits for panels with curved edges. Multiple passes recommended. Maximum RPM 20,000.
Standard Equipment:
54118 Ogee Raised Panel Router Bit

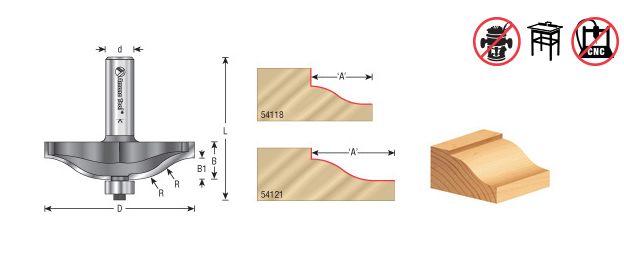

Specifications:
Radius (R): 3/4″
Diameter (D): 2-5/8″
Cutting Height (B): 5/8″
B1: 5/16″
Cutting Depth (A): 1-1/16″
Shank (d): 1/2″
Overall Length (L): 2-1/2″
Replacement Bearing: 47706
Flutes: 2
Features:
High quality long lasting European sub-micrograin & micrograin carbide
Thick carbide for multiple resharpenings
Different carbide grades for different materials
Silver induction brazing for maximum carbide bonding strength
Produced according to Holz-BG German standards for safety and quality
Centerless ground shank for exact fit
Multi axis grinding
Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
Use of only solid bar stock steel (brazed bits)
Shanks laser etched with size, maximum RPM ratings and clamping depth
