Description

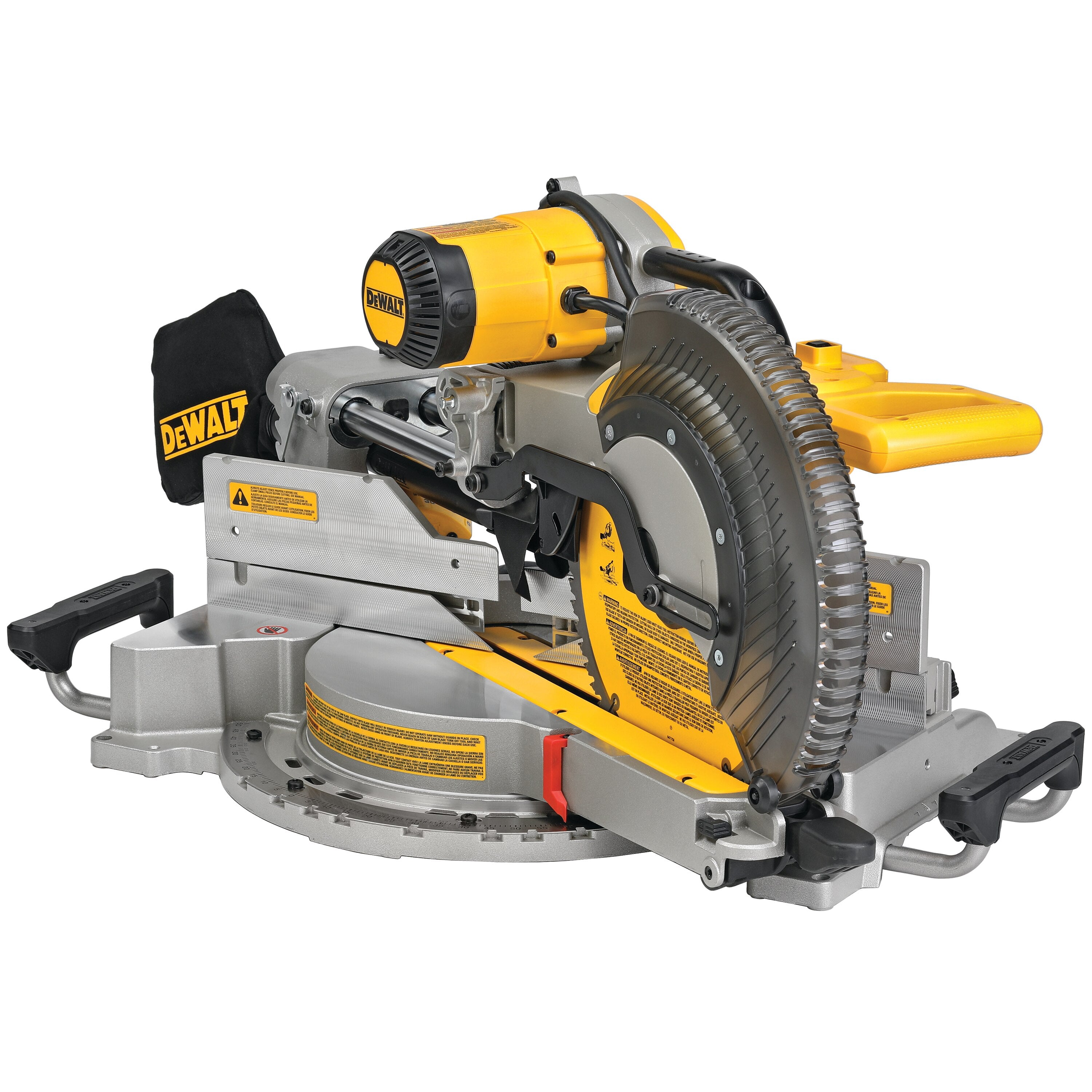

DeWalt DWS780 12″ Miter Saw

Double Bevel Sliding Compound Miter Saw

Standard Equipment:

• DWS780 Miter Saw
• Carbide Blade
• Dust Bag
• Blade Wrench

Optional Accessories:

• Miter Saw Blades

Specifications:

• Rating: 120V AC
• Amperage: 15.0
• No-load RPM: 3,800
• Blade Diameter: 12″
• Round Arbor Diameter: 5/8″ or 1″
• 90° Cross-cut Capacity…
  Dimensional Lumber: 2″x 14″
  Max Width: 16″
• 45° Miter Capacity:
  Dimensional Lumber: 2″x 14″
  Max Height: 2″x 12″
  Max Width: 2″x 12″
• Vertical Capacity…
  Baseboard Against Fence: 6-3/4″
  Crown Molding Vert Nested: 7-1/28″
• Horizontal Capacity…
  Baseboard Lying Flat: 16″
  Crown Molding Lying Flat: 13-3/4″
• Weight: 56.0 lbs

Features:

• Integrated XPS cross cut positioning system provides adjustment free cut line indication for better accuracy and visibility.
• Powerful 15 Amp, 3,800 rpm motor delivers extended power and durability.
• Super efficient dust collection system captures over 75% of dust generated.
• Tall sliding fences support crown molding up to 7-1/2″ nested and base molding up to 6-1/2″ vertically against the fence while easily sliding out of the way for bevel cuts.
• Exclusive Back Fence Design cuts up to 2×16 dimensional lumber at 90° and 2×12 at 45°.
• Adjustable stainless steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy.
• Miters 60° to the right and 50° to the left providing increased capacity.
• Oversized bevel scale makes bevel angle adjustments accurate and easy.
• Compact, lightweight design (56 lbs.) allows for easy transport and storage.
• Cam lock miter handle with detent override deliver quick and accurate miter angles.
• Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw.
• Innovative gearbox and belt-drive design increases vertical cutting capacity.
• Precise miter system and machined base fence support optimize durability and cutting accuracy.
