The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. It’s just as versatile in use, as it is tremendously convenient in its size. Make rip cuts of up to 11″ (280 mm), cross-cut widths of up to 17-3/4″ (450 mm) and bevel cuts of -2° to 47° The unique digital operation produces results with maximum precision, with accuracy within a tenth of a millimeter (1/256″). The 2×18 V dual battery system in combination with the brushless EC-TEC motor will impress you with its power and torque — you won’t notice any difference compared with a corded tablesaw. Together with the UG-CSC-SYS underframe, you have the perfect worktable with built-in support for ripping and cross-cutting, and it collapses for easy transport from the vehicle to the site. The CSC SYS 50: The ultimate in portable precision.
Standard Equipment:
(1) 18V Cordless Table Saw
(1) SYS 18V 2 x 5.0/TCL 6 DUO Energy Set
(1) HW Fine-Tooth Saw Blade W42
(1) Rip Fence
(1) Push Stick
(1) Miter Gauge
(1) Dust Collection Bag
(1) Riving Knife
(1) Blade Guard & Splitter
(1) 6mm Hex Key
(1) UG-CSC-SYS Underframe
Optional Accessories:
Reciprocating Saw Blades
Specifications:
Rating: 18 Volt
Dust Extraction Connection Dia: 1-1/16″ (27 mm)
Dimensions (L x W x H): 20-5/32″ x 15-19/32″ x 11-21/32″ (512 x 396 x 296 mm)
Cutting Depth 45°: 0 – 1-11/32″ (0 – 34 mm)
Cutting Height 0°: 0 – 1-7/8″ (0 – 48 mm)
Saw Blade Location Hole: 3/4″ (20 mm)
Parallel Cut Width: 11″ (280 mm)
Tabletop Height: 11″ (280 mm)
Cutting Height -10°: 13-16″ – 1-1/4″ (21 – 32 mm)
Weight: 33.08 lbs (15 kg)
Features:
Versatile: Parallel cuts up to 11″ (280 mm); cross cut width of up to 17-3/4″ (450 mm). Bevel cuts from -2° to 47°
Practical: At a cutting height of up to 1-3/8″ (35 mm), through to bevel cuts down to -10¡; ideal for back-beveling filler strips
Compact and mobile: Can be easily carried with one hand neatly stored in a Systainer format. Even easier to transport with the wheeled UG-CSC-SYS underframe
Extreme precision: The height and bevel angle are electrically adjusted at the press of a button via the digital display — accurate to within a tenth of a millimeter (1/256″)
Repeatable cuts are easy: The height and angle (mm and inches) are set parallax-free via the digital display, i.e. more accurately than any visual judgement. Repeatable cuts are a sure thing
Convenient: Four saw blade positions can be saved and selected via the digital display
Highly precise rip fence: Robust rip fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results
Highly precise angles: The miter gauge is optimally aligned and centrally clamped via a groove on the sliding table. For miter angles between -70¡ and +70¡
Absolutely smooth-sliding action: Ball bearing-mounted slide for parallel and angled cuts with maximum precision
Powerful: The brushless EC-TEC motor with high speeds of 6800 rpm guarantees fast sawing and perfect cutting results
Long-lasting: The combination of a brushless EC-TEC motor and a dual battery system with two 18 V battery packs (from 4.0 Ah) ensures a long runtime
Long-lasting: The brushless EC-TEC motor is long-lasting, durable and maintenance-free
Work appropriately for the material: With saw blades for nearly every material; speeds appropriate for the material can be preselected via the digital display
Dust-free: Chip collection bag for practically dust-free work, even without a mobile dust extractor
Cleaner working with a system: Ideal also in combination with the Festool cordless extractors
Compatible: Fits together with the entire Festool Systainer system and Systainer Systems van racking equipment

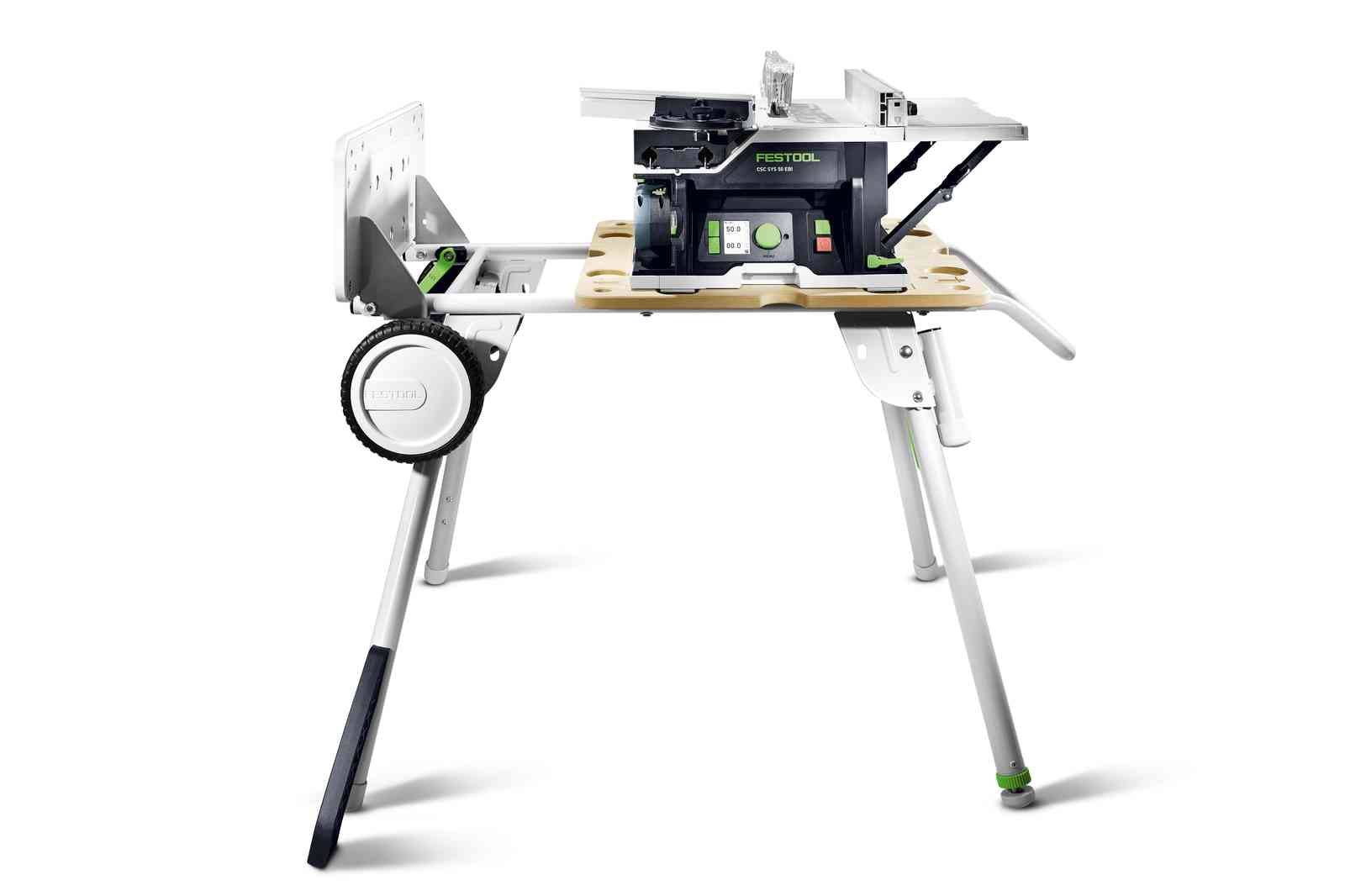

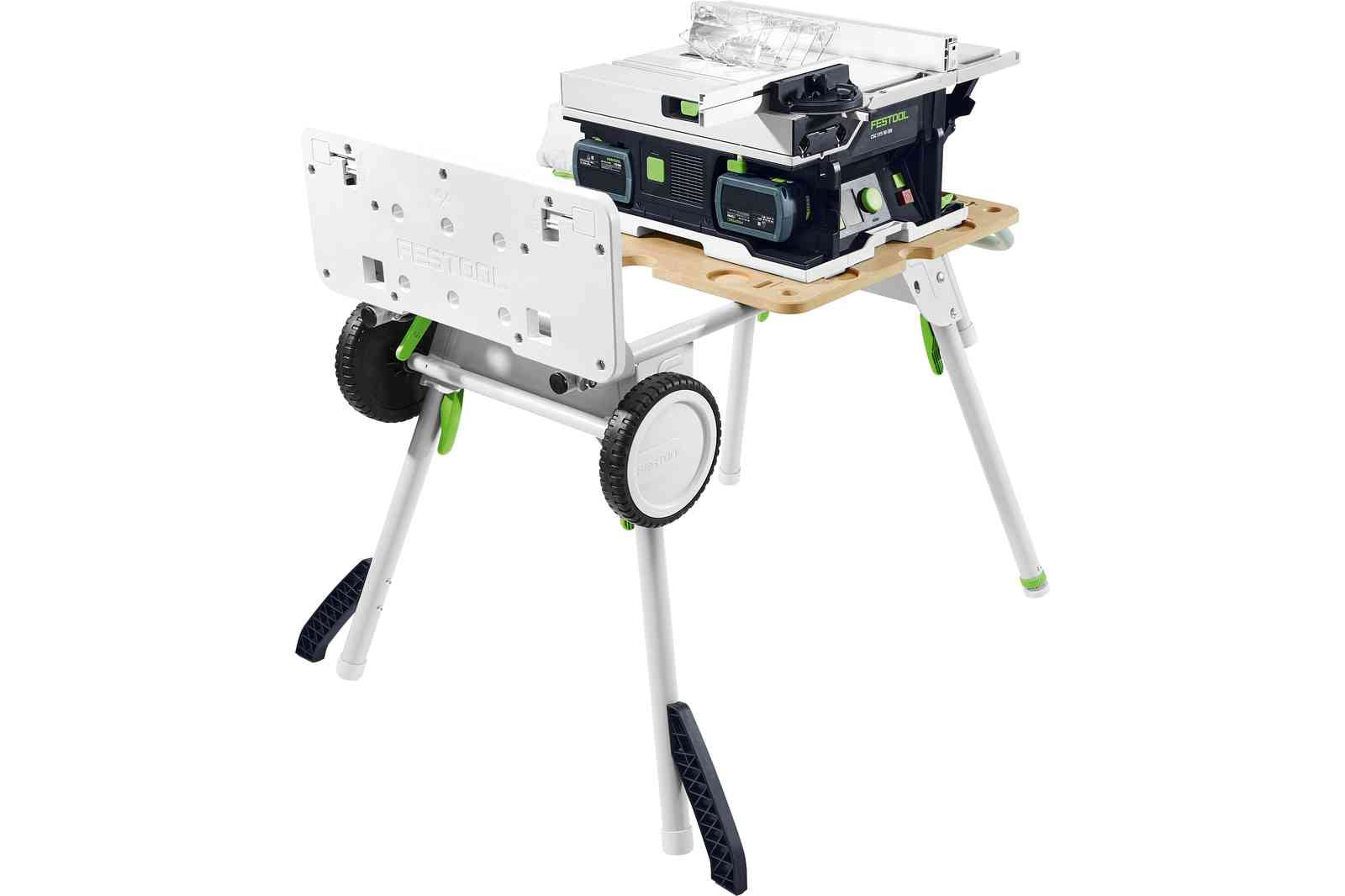

Flexible underframe: The UG-CSC-SYS underframe is the perfect solution for transport to the point of use and the ideal worktable in one
Unique: Three-year warranty for battery packs and chargers too
