Description

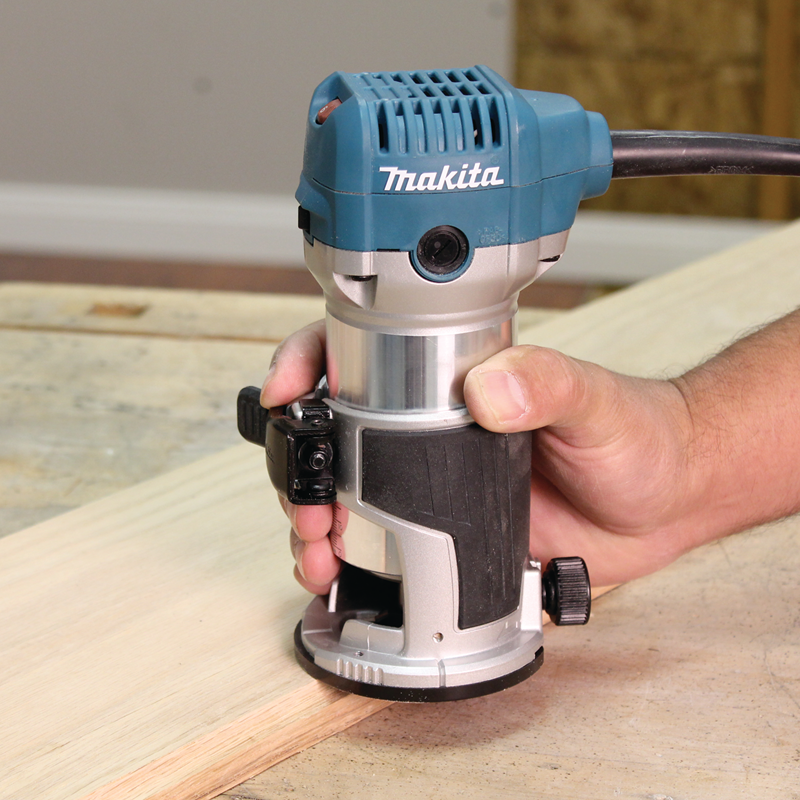

Makita RT0701CX3 Compact Router Kit

1-1/4 HP Variable Speed

Standard Equipment:

• (1) 1-1/4 HP* Compact Router (RT0701C)
• (1) 1/4″ Collet (763637-1)
• (1) Trimmer Base (196613-4)
• (1) Plunge Base (196094-2)
• (1) Tilt Base (198987-9)
• (1) Offset Base (196093-4)
• (1) Straight Guide (122965-7)
• (1) Dust Extracting Attachment, Fixed Base (195559-1)
• (1) Dust Extracting Attachment, Plunge Base (194733-8)
• (1) Spanner Wrench (781039-9)
• (1) Spanner Wrench (781011-1)
• (1) Trimmer Guide (122703-7)
• (1) Tool Bag

Specifications:

• Rating: 115 V AC / DC
• Amperage: 6.5
• Max Horsepower: 1-1/4
• No-load RPM: 10,000-30,000
• Collet Capacity: 1/4″
• Height: 7-7/8″
• Weight: 3.9 lbs

Features:

• Variable speed control dial (10,000 – 30,000 RPM) enables user to match the speed to the application.
• Smooth rack-and-pinion fine depth adjustment system for more precise settings.
• Slim and ergonomically designed body for increased comfort and control.
• Quick release cam lock system for convenient depth adjustments and base removal/installation.
• Electronic speed control maintains constant speed under load.
• Soft start feature for smooth start ups.
• High visibility base design for improved handling and performance.
• Base can be removed quickly to install other bases.
• Heavy duty aluminum motor housing engineered for increased durability.
• Shaft lock for quick and easy bit changes.
• Durable flat top design for added convenience when changing bits.
• Non-marring high-durability base insert for increased work piece protection.
• Easy-to-read depth scales.
• Uses 1/4″ shank routers bits.
• Double insulated.
• Plunge Base has 0″ 1-3/8″ plunge depth capacity for easy penetration into work piece.
• Easy-to-use fine depth adjustment with 3 preset depth stops for added precision.
• Conveniently located plunge lock lever for operator convenience.
• Removable clear plastic shield engineered to protect the operator from airborne debris.
• Sub-base accepts industry standard template guides for convenience.
• Tilt base provides routing at different angles with positive stops at -30° and 45°.
• Offset base allows for routing in hard-to-reach areas and as close as 3/4″ to the wall.
